인공지능(신경망, 딥러닝) 교육 정리(Artificial Neural Network 4)

용두사미

ㅁ The MINIST Dataset of Handwirtten numbers

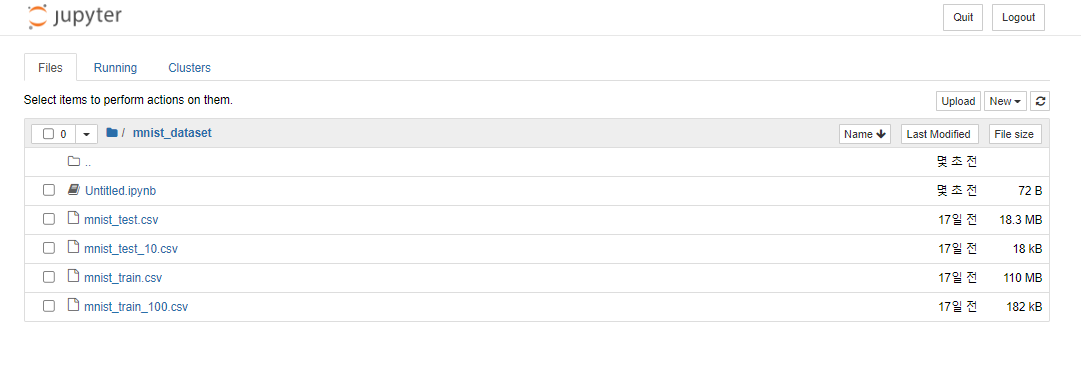

파일을 아나콘다에서 실행해서 폴더를 만들고 거기에 데이터를 업로드를 한다.

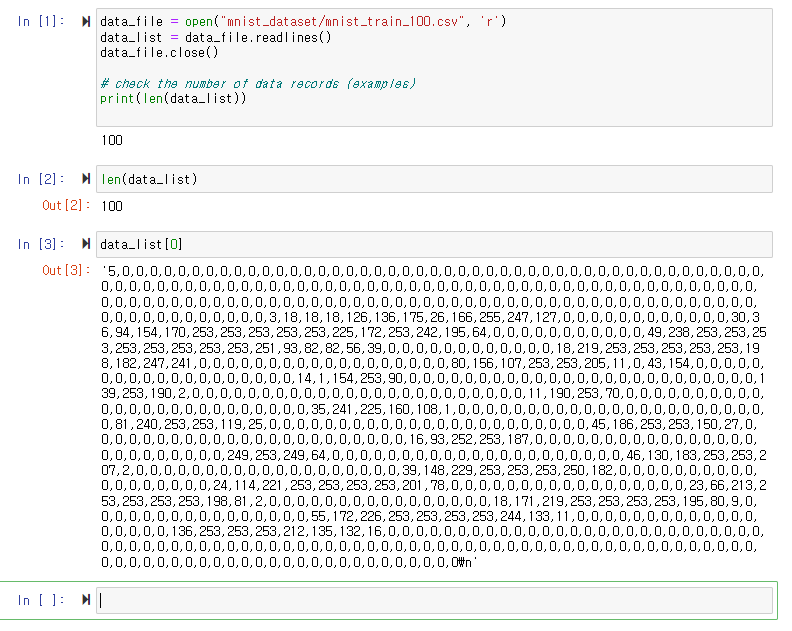

그리고 파일을 해당 폴더가 있는 폴더에서 notebook을 실행하고 아래의 내용을 실행하면 100이 나온다.

출력값의 범위는 활성함수의 출력 범위에 있어야한다.

로지스틱 함수의 범위 => 0.0 ~ 1.0(실제론 양 끝단에 도달할 수없다.

결과값은 출력이 어떻게되어야하는가?

이미지로출력? 28 x 28 = 784개의 출력노드 필요한것인가?

이미지를 분류해 정확한 클래스에 할당하는 것이 목표다.

0 ~ 9 까지 총 10개의 출력 노드에 각각 결과 값 할당

https://colab.research.google.com

Google Colaboratory

여기서 손쉽게 테스트해볼 수 있다.

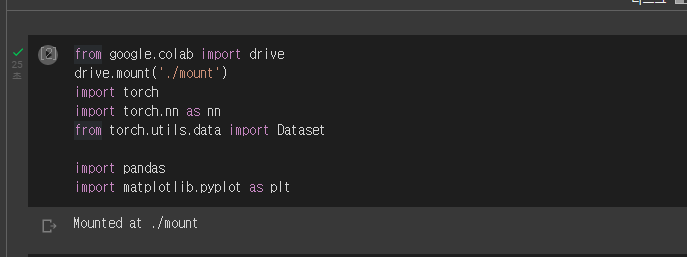

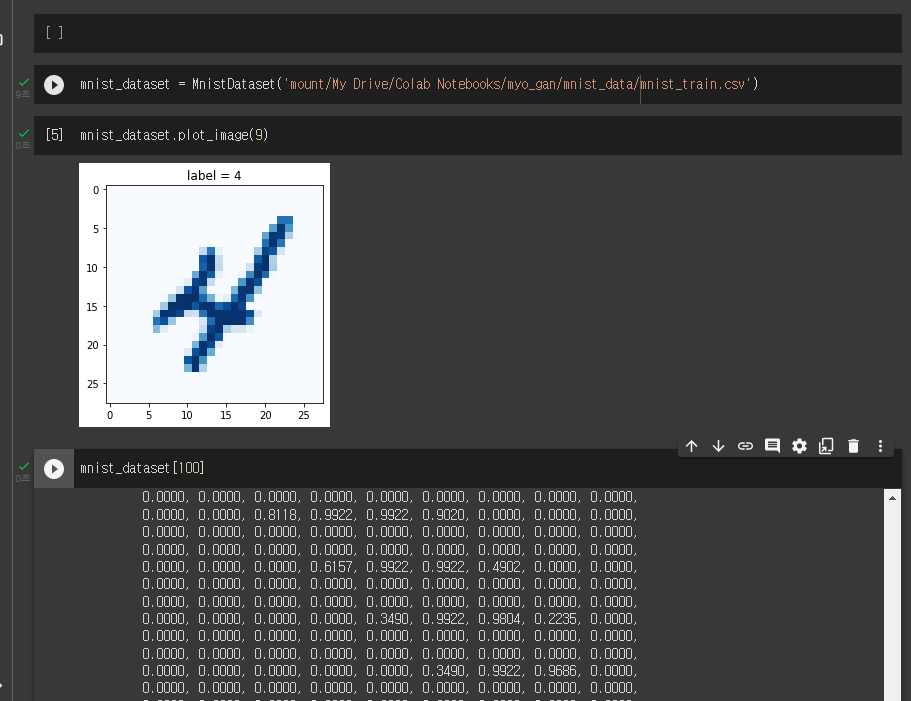

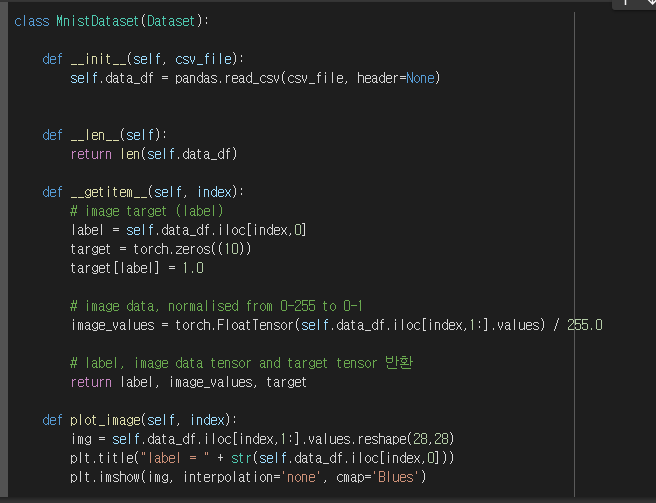

구글드라이브랑 연결하여 데이터를 삽입한다.





class Classifier(nn.Module):

    def __init__(self):
        # initialise parent pytorch class
        super().__init__()

        # 신경망 정의
        self.model = nn.Sequential(
            nn.Linear(784, 200),
            nn.Sigmoid(),
            nn.Linear(200, 10),
            nn.Sigmoid()
        )

        # 오차함수
        self.loss_function = nn.MSELoss()

        # 가중치 업데이트
        self.optimiser = torch.optim.SGD(self.parameters(), lr=0.01)

        # counter and accumulator for progress
        self.counter = 0
        self.progress = []




    def forward(self, inputs):
        # 모델 실행
        return self.model(inputs)


    def train(self, inputs, targets):
        # 모델 출력 계산
        outputs = self.forward(inputs)

        # 오차 계산
        loss = self.loss_function(outputs, targets)

        # increase counter and accumulate error every 10
        self.counter += 1
        if (self.counter % 10 == 0):
            self.progress.append(loss.item())

        if (self.counter % 10000 == 0):
            print("counter = ", self.counter)


        # zero gradients, perform a backward pass, and update the weights
        self.optimiser.zero_grad()
        loss.backward()
        self.optimiser.step()

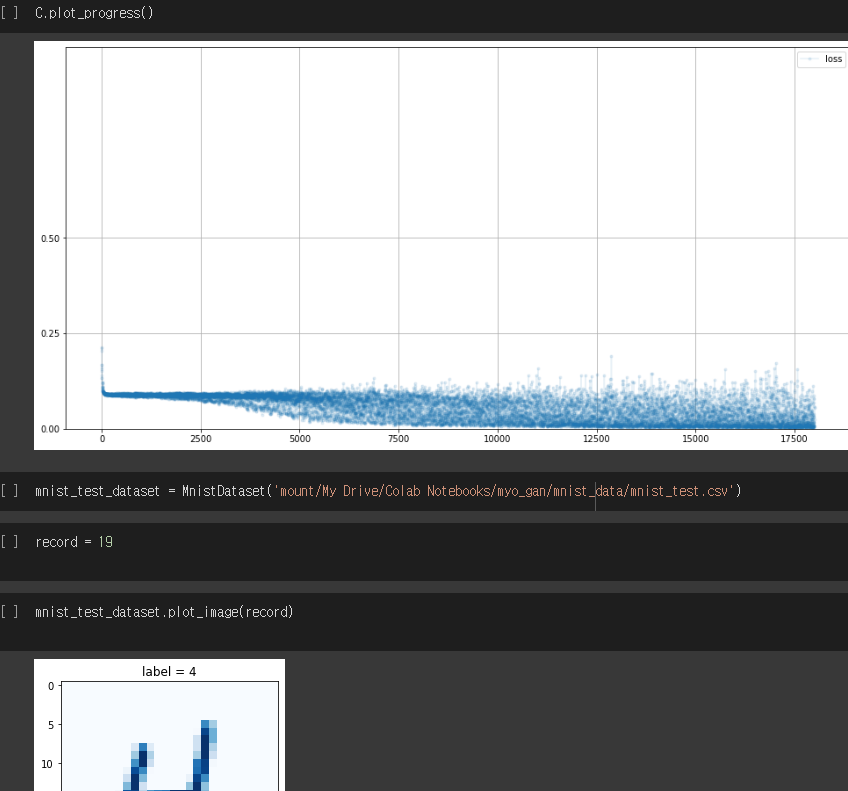

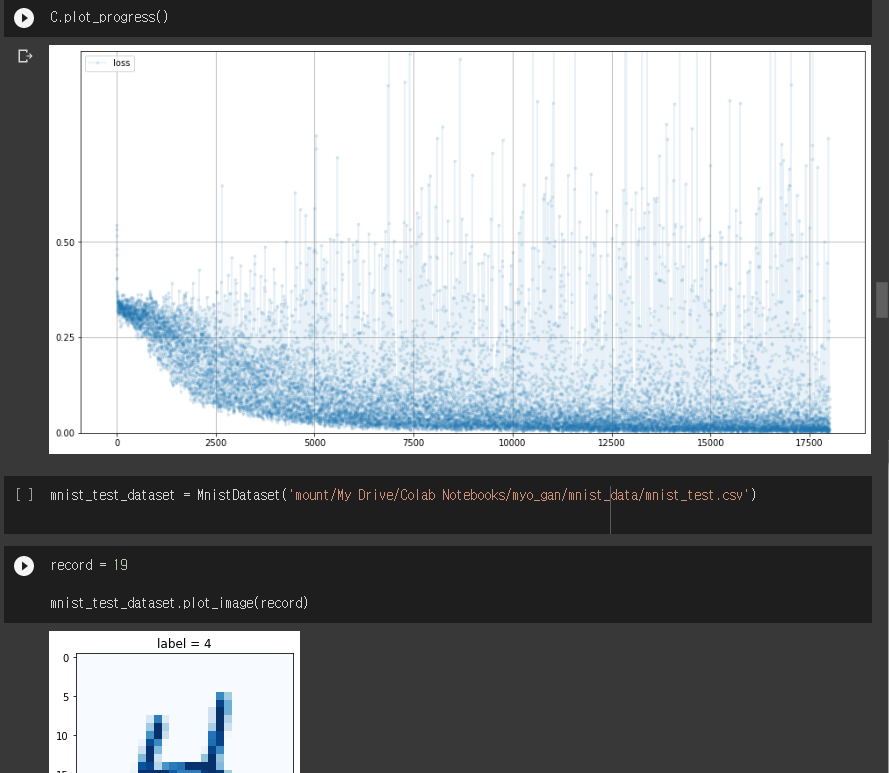

    #오차값 그래프 표현
    def plot_progress(self):
        df = pandas.DataFrame(self.progress, columns=['loss'])
        df.plot(ylim=(0, 1.0), figsize=(16,8), alpha=0.1, marker='.', grid=True, yticks=(0, 0.25, 0.5))

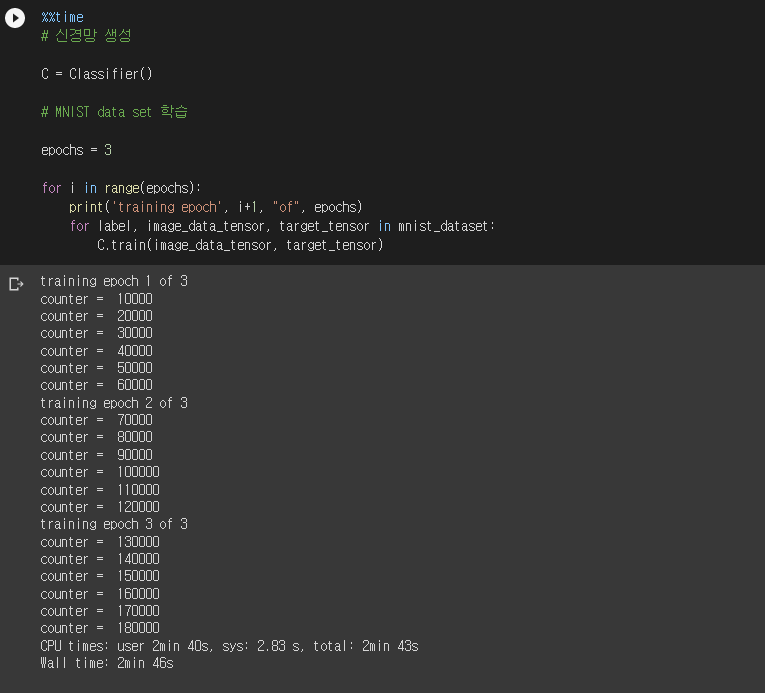

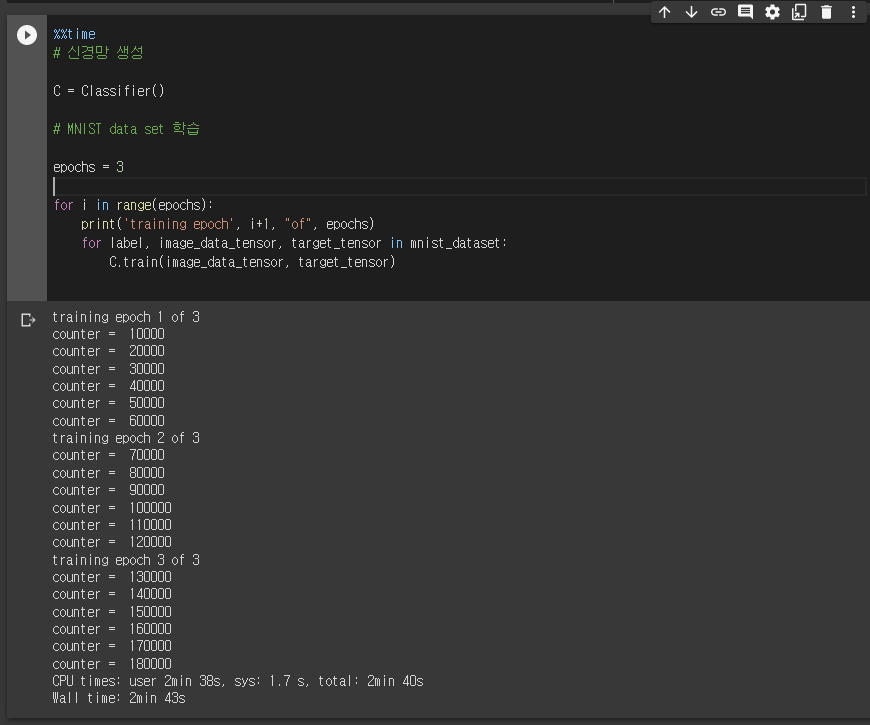

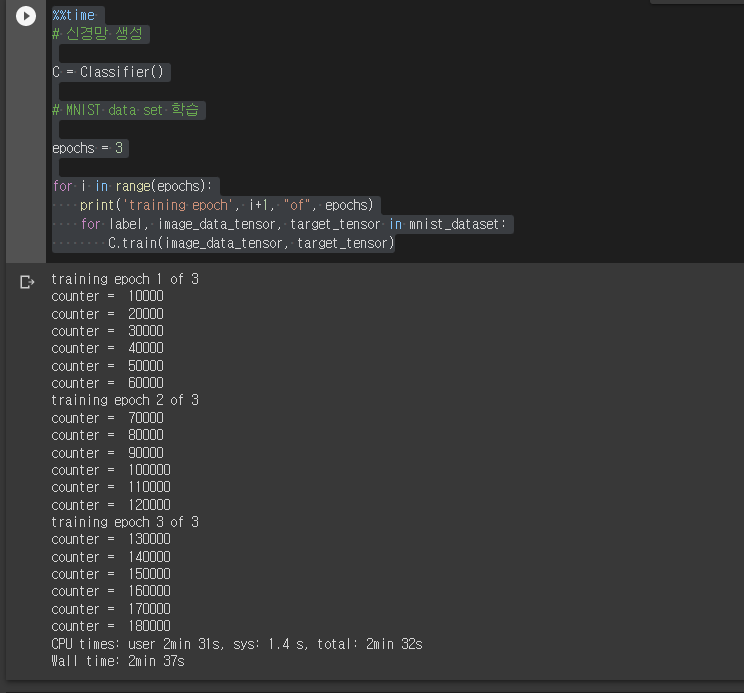

%%time
# 신경망 생성

C = Classifier()

# MNIST data set 학습

epochs = 3

for i in range(epochs):
    print('training epoch', i+1, "of", epochs)
    for label, image_data_tensor, target_tensor in mnist_dataset:
        C.train(image_data_tensor, target_tensor)



class Classifier(nn.Module):

    def __init__(self):
        # initialise parent pytorch class
        super().__init__()

        # 신경망 정의
        self.model = nn.Sequential(
            nn.Linear(784, 200),
            nn.Sigmoid(),
            nn.Linear(200, 10),
            nn.Sigmoid()
        )

        # 오차함수
        #self.loss_function = nn.MSELoss()
        self.loss_function = nn.BCELoss()

        # 가중치 업데이트
        self.optimiser = torch.optim.SGD(self.parameters(), lr=0.01)

        # counter and accumulator for progress
        self.counter = 0
        self.progress = []




    def forward(self, inputs):
        # 모델 실행
        return self.model(inputs)


    def train(self, inputs, targets):
        # 모델 출력 계산
        outputs = self.forward(inputs)

        # 오차 계산
        loss = self.loss_function(outputs, targets)

        # increase counter and accumulate error every 10
        self.counter += 1
        if (self.counter % 10 == 0):
            self.progress.append(loss.item())

        if (self.counter % 10000 == 0):
            print("counter = ", self.counter)


        # zero gradients, perform a backward pass, and update the weights
        self.optimiser.zero_grad()
        loss.backward()
        self.optimiser.step()

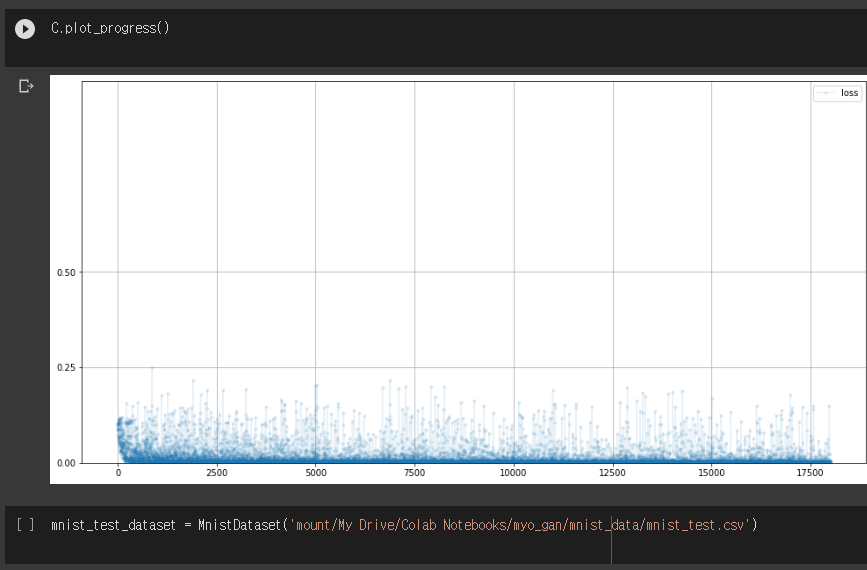

    #오차값 그래프 표현
    def plot_progress(self):
        df = pandas.DataFrame(self.progress, columns=['loss'])
        df.plot(ylim=(0, 1.0), figsize=(16,8), alpha=0.1, marker='.', grid=True, yticks=(0, 0.25, 0.5))

class Classifier(nn.Module):

    def __init__(self):
        # initialise parent pytorch class
        super().__init__()

        # 신경망 정의
        self.model = nn.Sequential(
            nn.Linear(784, 200),
            #nn.Sigmoid(),
            nn.LeakyReLU(0.02),
            nn.Linear(200, 10),
            nn.LeakyReLU(0.02)
            #nn.Sigmoid()
        )

        # 오차함수
        self.loss_function = nn.MSELoss()
        #self.loss_function = nn.BCELoss()

        # 가중치 업데이트
        self.optimiser = torch.optim.SGD(self.parameters(), lr=0.01)


        # counter and accumulator for progress
        self.counter = 0
        self.progress = []




    def forward(self, inputs):
        # 모델 실행
        return self.model(inputs)


    def train(self, inputs, targets):
        # 모델 출력 계산
        outputs = self.forward(inputs)

        # 오차 계산
        loss = self.loss_function(outputs, targets)

        # increase counter and accumulate error every 10
        self.counter += 1
        if (self.counter % 10 == 0):
            self.progress.append(loss.item())

        if (self.counter % 10000 == 0):
            print("counter = ", self.counter)


        # zero gradients, perform a backward pass, and update the weights
        self.optimiser.zero_grad()
        loss.backward()
        self.optimiser.step()



    #오차값 그래프 표현
    def plot_progress(self):
        df = pandas.DataFrame(self.progress, columns=['loss'])
        df.plot(ylim=(0, 1.0), figsize=(16,8), alpha=0.1, marker='.', grid=True, yticks=(0, 0.25, 0.5))

import numpy
# scipy.special for the sigmoid function expit()
import scipy.special
# library for plotting arrays
import matplotlib.pyplot
# ensure the plots are inside this notebook, not an external window
%matplotlib inline

# neural network class definition
class NeuralNetwork:


    # initialise the neural network
    def __init__(self, inputnodes, hiddennodes, outputnodes, learningrate):
        # set number of nodes in each input, hidden, output layer
        self.inodes = inputnodes
        self.hnodes = hiddennodes
        self.onodes = outputnodes

        # link weight matrices, wih and who
        # weights inside the arrays are w_i_j, where link is from node i to node j in the next layer
        # w11 w21
        # w12 w22 etc
        self.wih = numpy.random.normal(0.0, pow(self.inodes, -0.5), (self.hnodes, self.inodes))
        self.who = numpy.random.normal(0.0, pow(self.hnodes, -0.5), (self.onodes, self.hnodes))

        # learning rate
        self.lr = learningrate

        # activation function is the sigmoid function
        self.activation_function = lambda x: scipy.special.expit(x)


    # train the neural network
    def train(self, inputs_list, targets_list):
        # convert inputs list to 2d array
        inputs = numpy.array(inputs_list, ndmin=2).T
        targets = numpy.array(targets_list, ndmin=2).T

        # calculate signals into hidden layer
        hidden_inputs = numpy.dot(self.wih, inputs)
        # calculate the signals emerging from hidden layer
        hidden_outputs = self.activation_function(hidden_inputs)

        # calculate signals into final output layer
        final_inputs = numpy.dot(self.who, hidden_outputs)
        # calculate the signals emerging from final output layer
        final_outputs = self.activation_function(final_inputs)

        # output layer error is the (target - actual)
        output_errors = targets - final_outputs
        # hidden layer error is the output_errors, split by weights, recombined at hidden nodes
        hidden_errors = numpy.dot(self.who.T, output_errors)

        # update the weights for the links between the hidden and output layers
        self.who += self.lr * numpy.dot((output_errors * final_outputs * (1.0 - final_outputs)), numpy.transpose(hidden_outputs))

        # update the weights for the links between the input and hidden layers
        self.wih += self.lr * numpy.dot((hidden_errors * hidden_outputs * (1.0 - hidden_outputs)), numpy.transpose(inputs))




    # query the neural network
    def query(self, inputs_list):
        # convert inputs list to 2d array
        inputs = numpy.array(inputs_list, ndmin=2).T

        # calculate signals into hidden layer
        hidden_inputs = numpy.dot(self.wih, inputs)
        # calculate the signals emerging from hidden layer
        hidden_outputs = self.activation_function(hidden_inputs)

        # calculate signals into final output layer
        final_inputs = numpy.dot(self.who, hidden_outputs)
        # calculate the signals emerging from final output layer
        final_outputs = self.activation_function(final_inputs)

        return final_outputs

# number of input, hidden and output nodes
input_nodes = 784
hidden_nodes = 100
output_nodes = 10

# learning rate
learning_rate = 0.2

# create instance of neural network
n = NeuralNetwork(input_nodes,hidden_nodes,output_nodes, learning_rate)

# load the mnist training data CSV file into a list
training_data_file = open("mnist_dataset/mnist_train.csv", 'r')
training_data_list = training_data_file.readlines()
training_data_file.close()

# train the neural network

# epochs is the number of times the training data set is used for training
epochs = 7

for e in range(epochs):
    # go through all records in the training data set
    for record in training_data_list:
        # split the record by the ',' commas
        all_values = record.split(',')
        # scale and shift the inputs
        inputs = (numpy.asfarray(all_values[1:]) / 255.0 * 0.99) + 0.01
        # create the target output values (all 0.01, except the desired label which is 0.99)
        targets = numpy.zeros(output_nodes) + 0.01
        # all_values[0] is the target label for this record
        targets[int(all_values[0])] = 0.99
        n.train(inputs, targets)



# load the mnist test data CSV file into a list
test_data_file = open("mnist_dataset/mnist_test.csv", 'r')
test_data_list = test_data_file.readlines()
test_data_file.close()

# test the neural network

# scorecard for how well the network performs, initially empty
scorecard = []

# go through all the records in the test data set
for record in test_data_list:
    # split the record by the ',' commas
    all_values = record.split(',')
    # correct answer is first value
    correct_label = int(all_values[0])
    # scale and shift the inputs
    inputs = (numpy.asfarray(all_values[1:]) / 255.0 * 0.99) + 0.01
    # query the network
    outputs = n.query(inputs)
    # the index of the highest value corresponds to the label
    label = numpy.argmax(outputs)
    # append correct or incorrect to list
    if (label == correct_label):
        # network's answer matches correct answer, add 1 to scorecard
        scorecard.append(1)
    else:
        # network's answer doesn't match correct answer, add 0 to scorecard
        scorecard.append(0)

# calculate the performance score, the fraction of correct answers
scorecard_array = numpy.asarray(scorecard)
print ("performance = ", scorecard_array.sum() / scorecard_array.size)
